Hospital Circulation Planning: The Blueprint for Separating Doctors, Patients, and Supplies

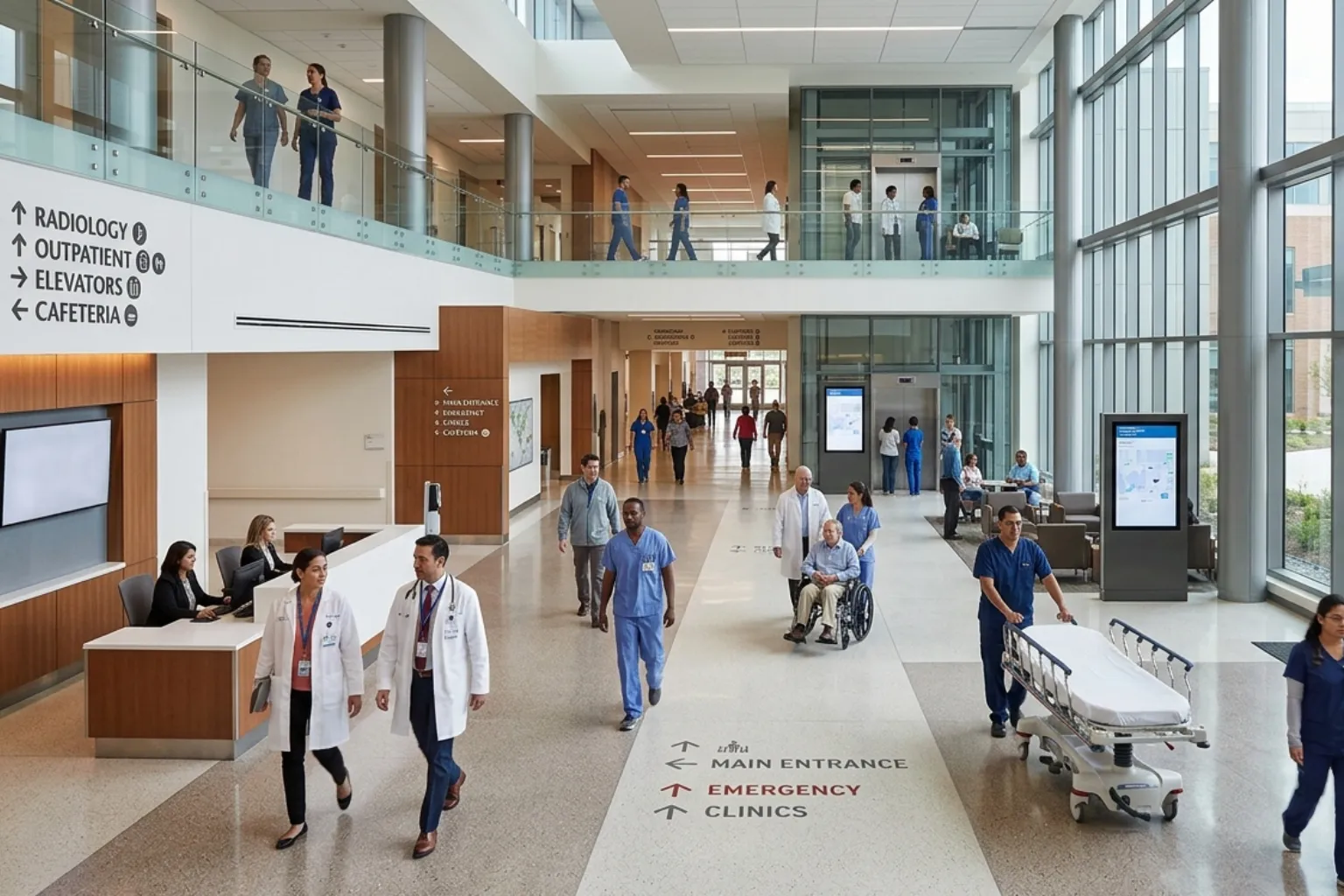

Walk into any well-run hospital, and you will notice something interesting. You might see a doctor rushing down a hallway, a patient being wheeled to radiology, and a cart carrying sterile surgical kits - all moving without getting in each other's way. That is not luck. That is hospital circulation planning in action.

When a hospital gets its movement paths right, infection rates drop, staff work faster, and patients feel calmer. But when circulation fails, you get chaos. Doctors lose precious minutes, clean supplies cross paths with dirty waste, and patients wander lost through endless corridors. This guide explains exactly how to separate doctors, patients, and supplies using proven planning strategies, real dimensions, and compliance-ready layouts. Let's get started.

Why Separating Traffic Flows Defines a Hospital's Success

A hospital is a small city. Thousands of people - patients, visitors, doctors, nurses, technicians, cleaners - move through it every day. On top of that, tons of supplies travel inward: medicines, food, linens, surgical instruments. And waste goes outward: biomedical waste, soiled linens, used sharps. If all these flows share the same narrow corridors, you get bottlenecks, frustration, and serious hygiene risks.

Research shows that nearly 40% of mid-sized hospitals undergo major layout changes within five years of opening because circulation was poorly planned from the start. That is expensive and disruptive. The solution lies in a simple principle: separate everything. This is a core area of focus for any hospital project consultancy to ensure operational success.

The overall hospital layout works best when central corridors are reserved for clean supplies and staff access, while waste and soiled materials are taken away through separate external routes. This separation is the backbone of modern healthcare design.

The Four Circles of Hospital Movement

Before we get into zoning and dimensions, let us break down exactly who needs to move where. Hospital circulation has four main traffic groups:

Patients and families: They need intuitive paths, minimal walking, and clear wayfinding. Outpatients should never wander into critical care zones.
Doctors and clinical staff: They need rapid access to operating theaters, ICUs, and emergency rooms without crossing public spaces.
Clean supplies: Medicines, sterile instruments, food, and linens must travel through protected corridors, often via dedicated service lifts.
Soiled materials and waste: Biomedical waste, used linens, and dirty instruments need isolated routes that never touch clean supply paths.

Every hospital must separate these four flows clearly: public movement, staff movement, clean supply routes, and soiled waste routes. This reduces infection risk, prevents cross-movement, and makes regulatory audits easier.

Zoning: The Framework That Keeps Everything in Its Place

Zoning divides a hospital into areas based on hygiene risk and access control. This is not just about drawing lines on a floor plan. It is about creating physical and operational barriers that protect patients and staff.

Standard hospital zoning follows a progression from public to strictly controlled areas:

Clean zone: Operating theaters, ICUs, CSSD (Central Sterile Supply Department) - highest hygiene requirements, positive air pressure, restricted access.
Semi-clean zone: OPDs (Outpatient Departments), diagnostic labs, nurse stations - controlled but not sterile.
Non-clean zone: Reception, waiting areas, administration, cafeteria - open to the public with basic hygiene.
Dirty zone: Utility rooms, biomedical waste storage, janitor spaces - negative air pressure, isolated from everything else.

This risk-based approach to zoning means high-risk areas like operating theaters and isolation wards are physically separated from low-risk public zones. The result is a hospital where infection cannot easily jump from one area to another. The National Accreditation Board for Hospitals & Healthcare Providers (NABH) sets clear NABH 6th Edition standards for functional zoning, requiring strict separation of sterile and soiled pathways.

Designing Patient Flow: Where People Go and Why

Patient circulation should feel effortless. When someone arrives for an outpatient appointment, they should not have to ask for directions five times. When an emergency patient is rushed in, the path from ambulance bay to trauma bay to operating room should be short and unobstructed.

Here is how to plan patient flow the right way:

Separate entrances for different needs

Hospitals should have at least four distinct access points:

Main entrance for general outpatients and visitors
Emergency entrance for ambulances and walk-in emergencies
Service entrance for clean supplies and deliveries
Service exit for waste removal (ideally isolated from the main site)

At the building level, circulation for emergency, patients, and staff should be clearly segregated both horizontally and vertically. That means different elevators for staff versus the public, separate corridors for gurneys versus visitors, and dedicated stairwells for emergency use only. Poorly planned access is one of the most common hospital design mistakes doctors regret after their facility opens.

Short distances between critical departments

Life-saving departments must sit close together. The standard adjacency chain is: Emergency → Imaging (CT/X-ray) → Operating Theater → ICU. Every extra meter that a trauma patient travels adds risk. Keep these departments on the same floor or directly connected by a restricted corridor.

The Indian Health Facility Guidelines (HFG-India) also recommend direct, restricted access between emergency care areas and the OT/ICU cluster. This is not optional - it is a matter of patient survival. The HFG-India emergency unit guidelines provide detailed specifications for these critical adjacencies.

Staff Circulation: Giving Your Team the Space They Need

Doctors and nurses are the most valuable asset in any hospital. Their time should be spent treating patients, not walking endlessly between departments. Staff circulation requires dedicated routes that bypass public areas entirely.

This is where "on-stage" and "off-stage" circulation comes in. Patient and public areas are "on-stage." Clinical workflows happen "off-stage" - in staff-only corridors, changing rooms, and sterile zone entry points. This separation reduces noise, protects privacy, and keeps staff moving efficiently.

Vertical movement cores should be placed at building corners and in the middle. Link corridors between floors ensure quick access between operating theaters, diagnostics, and wards. The goal is to keep travel distances under 60 meters for everyday routes.

Access must be limited across zones to reduce microbial load and meet NABH standards. Use airlocks and anterooms between clean and semi-clean zones. Install keycard or staff-only access to sterile areas. Put clear signage and sensor control on doors.

Without proper planning, a hospital's layout can severely hamper staff productivity. Understanding designing hospitals for maximum efficiency is key to avoiding staff burnout and improving patient care.

Clean Supply Chain: Protecting Sterility from Dock to Patient

Every day, a hospital receives tons of supplies: medicines, surgical instruments, linens, food, PPE, and more. If these items get contaminated during transport, patient safety is compromised. Clean supply circulation is about protecting sterility at every step.

The CSSD (Central Sterile Supply Department) sits at the heart of clean circulation. Used instruments come in through a dirty receiving area, get cleaned and sterilized, and exit through a clean corridor. This one-way flow prevents recontamination - a principle that applies to the whole hospital supply chain.

Vertical planning matters too. Hospitals should align staircases, lifts, and MEP shafts with zoning needs to prevent cross-contamination. Clean supplies should enter the building through a dedicated service dock, travel upward via goods lifts, and reach wards through protected corridors. Soil carts should never share space with medicine carts. A well-executed hospital MEP systems plan is crucial to ensure separate ducting and plumbing for these different zones.

In operating theaters, the rule is strict: sterile and unsterile zones are distinctly divided, with unidirectional flow of materials. Instruments travel in case carts via goods lifts, keeping clean and dirty flows entirely separate.

Waste and Dirty Utility: The Backward Flow That Must Be Controlled

What goes into a hospital must also come out - but waste cannot follow the same paths as supplies. Biomedical waste, used linens, and dirty instruments need their own circulation logic. This is often called "reverse circulation."

Dirty utility rooms - also called sluice rooms - are where soiled items are initially handled. These rooms should be designed to maintain cleanliness through zoning and demarcation of clean and dirty areas. Flow should go from dirty to clean, ideally with two doors: one entering from the dirty zone and one exiting into the clean zone.

When clean and dirty paths intersect, infection risks rise dramatically. A 150-bed hospital in Delhi failed its first NABH audit because soiled and sterile corridors overlapped. Rectification cost ₹1.2 Cr in retrofits - avoidable if IPC zoning had been mapped in the original design.

At the hospital level, medical waste leaves through the outside corridors, never crossing the central paths used for clean deliveries and staff access. Waste carts have segregated corridor access from operating theaters, ICUs, and wards straight to the disposal yard. This is not just good design - it is a regulatory requirement under most healthcare facility guidelines.

Breaking Down the Critical Zones

Let us look at how circulation principles apply to specific hospital departments. Each zone has unique requirements based on its clinical function.

Emergency Department

The emergency department is the front door for critical care. Circulation here must handle high volume, high urgency, and high variability. Key requirements include:

Separate ambulance bay and walk-in entrance
Triage area immediately after entry
Direct access to trauma bays from ambulance drop-off
Short, straight corridors to CT/X-ray
Restricted corridor connecting to OT and ICU
Isolation rooms for potentially infectious patients

Studies show that spatial separation of respiratory patients in emergency departments affects flow intervals and length of stay. The takeaway? Plan for flexibility. You need the ability to isolate patients without disrupting the rest of the ED flow.

Operating Theater Complex

The OT complex is the most tightly controlled zone in any hospital. Sterility is everything. The ideal layout uses a central clean corridor for staff and sterile supplies, with separate peripheral corridors for dirty items and waste.

Patient flow in the OT complex follows a sequence: pre-operative holding area → operating room → PACU (Post-Anesthesia Care Unit). Staff have separate entrances, changing rooms, and hand-washing stations before entering the sterile core. Soiled materials exit through a different door entirely.

The operating rooms themselves should be placed close to CSSD - ideally on the floor directly above or below, connected by a dedicated goods lift. This keeps instrument transport efficient and contained.

Another critical factor is the placement of the OT within the hospital's vertical structure. Designing for growth ensures that the OT and its surrounding support areas can accommodate future surgical volumes and technological upgrades without major structural changes.

Intensive Care Unit (ICU)

ICU patients are the sickest in the hospital. They cannot afford any infection exposure. ICU layout should move from public → semi-restricted → restricted zones. Visitor access is limited and controlled. Staff corridors should not double as patient transport routes.

Noise control is another circulation concern in ICUs. Staff stations, corridors, doors, and equipment placement significantly affect the acoustic environment. Keep staff work areas away from main patient zones wherever possible.

Central Sterile Supply Department (CSSD)

The CSSD is the engine of hospital sterility. It receives used instruments from every department, cleans them, sterilizes them, and sends them back ready for use. The key to an effective layout is ensuring a one-way traffic and workflow, keeping clear areas for sterile, clean, and dirty materials.

The dirty-to-clean flow refers to the physical and procedural separation of contaminated and sterile items within the sterile processing department. Used instruments enter through a dirty receiving zone, move through cleaning and disinfection, and exit through a clean zone. This unidirectional flow is non-negotiable for patient safety.

Dimensions That Work: Corridor Widths and Space Standards

Good circulation is not just about separation - it is about space. If corridors are too narrow, nothing flows. If they are too wide, you waste precious square footage and increase walking distances.

Here are the standard circulation dimensions used in hospital planning:

Area Type	Recommended Clear Width	Notes
General corridors (public)	2.45 m (minimum)	Allows two beds or trolleys to pass safely
ICU/OT/ED corridors	2.4 m+	Extra width for emergency equipment and rapid movement
Bed/trolley circulation	2.15 m	Minimum when passing spaces are provided
Non-patient corridors	1.5 m (1.8 m ideal)	Longer than 12 m need extra width for wheelchair access
Corridors with observation bays	2.6 m clear	Bays may be located in corridor areas

The National Building Code (NBC) of India specifies that NBC Part 4 (Fire & Life Safety) requires staircase width of minimum 2.0 m for institutional buildings and prohibits dead-end corridors beyond 6 m without full sprinkler coverage.

Ramps should have a slope of 1:15 to 1:18 and must allow for maneuvering beds and trolleys at any turning point. The flooring throughout must be anti-skid and non-slippery, especially in circulation areas. The International Health Facility Guidelines also specify that travel corridors leading to patient access areas should have a clear width of 2450mm, with consideration for increasing to 3000mm in large facilities.

Vertical Circulation: Moving Up and Down Without Conflict

In multistory hospitals, vertical movement is as important as horizontal movement. Separate lifts serve different purposes:

Public lifts: For patients, visitors, and general access
Staff lifts: Restricted access for doctors and nurses
Goods lifts: For clean supplies, food, and medicines
Service lifts: For waste, soiled linens, and dirty equipment

The International Health Facility Guidelines for vertical transportation specify minimum lift dimensions: bed lifts should have 2500kg capacity with clear car dimensions of 1800mm wide by 2700mm deep, while service/goods lifts require 2500kg capacity with 1600mm wide by 2200mm deep.

At the site level, there should be dedicated parking spaces separately for ambulances, hospital staff, and visitors. All weather motorable roads lead to the emergency entrance. And the approach road to the emergency department must be illuminated at night.

Vertical zoning follows the risk gradient: lower floors house OPDs and labs (high public access), mid floors hold wards and ICUs (moderate access), and top floors contain operating theaters and sterile storage (restricted access). This arrangement naturally limits who can go where.

Smart Circulation: Technology That Keeps Things Moving

Modern hospitals are adding technology to make circulation smarter. Digital twins - virtual replicas of the hospital - are emerging as valuable tools for short-term decision-making in patient flow management. These systems let you simulate changes before spending money on construction.

AI camera analytics can monitor crowding and inform the redesign of waiting areas. Digital signage directs patients to open spaces and reduces congestion. Real-time bed management systems help avoid access blocks that clog emergency department flow.

For hospitals, the World Health Organization's infection prevention and control guidelines provide evidence-based recommendations that should be integrated into circulation planning, particularly for managing airborne and contact-based infections.

Poor circulation planning can lead to significant healthcare construction project delays when issues are discovered during commissioning. Using building information modeling (BIM) to simulate circulation early in the design phase helps identify pinch points before they become expensive problems. Many healthcare projects in India, Nigeria, Kenya, and other countries now rely on specialized hospital project consulting in Nigeria and across Africa to guide these complex design decisions from the ground up.

Case in Point: A Well-Zoned Hospital in Action

The JSW Sanjeevani Multispeciality Hospital in India shows how these principles work in practice. Facilities and spaces are zoned from the site to the building level to support smooth movement of different user groups. Distinct adjacencies in zoning and circulation for emergency, patients, and staff allow for easy navigation. Large murals in public circulation areas help with wayfinding, and smaller art pieces in consultation rooms create a calming environment.

Another example: The Dumfries and Galloway Royal Infirmary minimizes travel distances between departments by segregating flows by floor. Principal circulation routes are separated by floor to minimize cross-flows, with rest opportunities for elderly users and areas that promote interaction between staff disciplines.

These real-world examples prove that good circulation is not theoretical. It works when you commit to separation from the earliest planning stage.

In many African nations, similar principles are being applied to modernize healthcare infrastructure. How Indian healthcare expertise is transforming African hospitals shows how specialized knowledge in hospital planning is helping new facilities avoid legacy design problems.

Common Pitfalls (And How to Skip Them)

Even experienced planners make mistakes. Here are the most common circulation failures and how to avoid them:

Pitfall #1: Ignoring functional zoning. Poor zoning of sterile, semi-sterile, and non-sterile areas causes infection risks and operational confusion. The fix is to follow NABH functional zoning standards from the very beginning. Clearly demarcate zones and simulate circulation early using BIM tools.

Pitfall #2: Overlooking dirty-to-clean flow. When clean and dirty paths intersect, you are asking for an infection outbreak. Always maintain one-way circulation for soiled and clean utilities.

Pitfall #3: Designing for aesthetics, not flow. Beautiful lobbies are worthless if patients cannot find the outpatient department. Prioritize clinical adjacency and compact circulation over grand entrances.

Pitfall #4: Skipping patient flow simulation. One 150-bed hospital in Delhi faced an average 18-minute delay per patient in diagnostic turnaround because of poor layout. Simulation would have caught this before construction.

Vertical and Horizontal Integration

A well-planned hospital integrates both vertical and horizontal circulation seamlessly. Horizontal zoning on each floor typically follows a pattern: public front (OPDs, diagnostics, waiting), mid-core (nursing, admin, staff areas), and rear (critical and restricted zones).

Vertical zoning across floors typically places OPDs and labs on lower floors (high public access), wards and ICUs on mid floors (moderate access), and OT with sterile storage on top floors (restricted access). Aligning staircases, lifts, and MEP shafts with zoning needs prevents cross-contamination and supports efficient circulation.

For projects on constrained urban sites, designing a hospital on a tight plot requires even more careful integration of vertical circulation with departmental adjacencies to ensure every square foot counts.

Conclusion

Hospital circulation planning is not about drawing corridors on a floor plan. It is about saving time, preventing infections, and making sure that when a patient needs help, the path is clear. Separating doctors, patients, and supplies sounds simple, but doing it well requires careful zoning, appropriate dimensions, dedicated routes for each traffic group, and a commitment to never letting clean and dirty paths cross.

A well-zoned hospital is a safe hospital. The invisible framework of zoning and circulation influences infection control, time efficiency, patient comfort, and regulatory approval. Whether you are planning a new facility or upgrading an existing one, start with separation. Your patients - and your staff - will thank you.

If you are in the early stages of hospital planning, starting with a hospital feasibility study can help identify circulation requirements before any construction begins. The expertise of a specialized hospital project consultant can make the difference between a facility that struggles with flow and one that operates with quiet efficiency from day one.

Frequently Asked Questions

1. What is the minimum corridor width required in a hospital setting?
General patient corridors need a minimum clear width of 2.45 meters to safely accommodate two beds or trolleys passing each other, according to the International Health Facility Guidelines. ICU, OT, and emergency department corridors require at least 2.4 meters to allow rapid movement of emergency equipment. The National Building Code of India also requires staircase width of minimum 2.0 meters for institutional buildings.

2. Why is dirty-to-clean flow so important in hospital design?
Dirty-to-clean flow prevents cross-contamination that could lead to hospital-acquired infections. Used instruments enter through a dirty zone, are cleaned and sterilized, and exit through a clean zone without ever reversing direction. This principle applies to everything from instrument processing to linen handling to biomedical waste transport. A 150-bed hospital in Delhi failed its NABH audit because soiled and sterile corridors overlapped, requiring ₹1.2 Cr in retrofits.

3. How can I separate patient and staff circulation without doubling my corridor square footage?
Vertical separation works well - put staff corridors on one floor and public circulation on another. Or use a "racetrack" layout with a central staff/core zone surrounded by patient zones. Good lifts and stairwell placement also reduce the need for extra horizontal corridors. The key is to plan adjacencies so that staff routes are naturally short and direct. Following NABH functional zoning standards from the beginning helps achieve this efficiently.

4. What are the key Indian standards for hospital circulation planning?
NABH 6th Edition standards (effective January 2025), NBC Part 4 (Fire & Life Safety), and the Health Facility Guidelines (HFG-India) provide the core requirements. These include minimum corridor widths (2.45 m), ramp slopes (1:15 to 1:18), anti-skid flooring, separate entrances for different traffic groups, and specific zoning requirements for sterile, semi-sterile, and non-sterile areas. NABH Clause IPC.2 requires strict separation of sterile and soiled pathways.

5. How does poor hospital circulation affect infection control?
When clean and dirty paths intersect, there is direct risk of contamination - soiled linens brushing against sterile supplies, waste carts passing medicine deliveries. This increases hospital-acquired infection rates. Poor zoning also means patients with airborne infections may walk through general waiting areas, exposing others. Proper circulation separates these flows so that contagion cannot travel through movement paths. The WHO infection prevention and control guidelines emphasize ventilation, cough hygiene, and patient flow as critical interventions for preventing transmission of respiratory infections.
